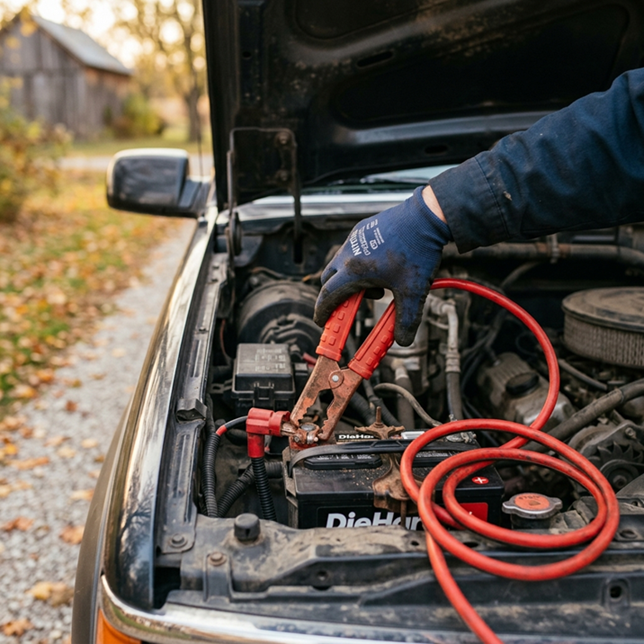

To properly jump start a dead car battery, park a booster vehicle nose-to-nose with the disabled vehicle, turn off both ignitions, and connect the jumper cables in a strict four-step sequence: red clamp to dead battery positive terminal, red clamp to booster battery positive terminal, black clamp to booster battery negative terminal, and the final black clamp to a clean, unpainted metal grounding point on the disabled vehicle's engine block or frame. Start the booster vehicle, let it idle for three to five minutes, and then turn the key in the disabled vehicle.
Following this sequence protects delicate electronics across Chevrolet, GMC, and Toyota platforms. Once the disabled vehicle starts up, leave both engines running while removing the cables in the exact reverse order: disconnect the negative grounding clamp from the restarted vehicle first, followed by the negative clamp on the booster battery, the positive clamp from the booster battery, and finally the positive clamp on the dead battery. Keeping the cable clamps from touching each other or any metal surface during this process prevents short circuits.
When working on isolated farm properties or rural routes around Kirksville, having a working set of cables and knowing this sequence keeps a dead battery from leaving you stranded miles from home. If your vehicle struggles to start even with jumper cables attached, the issue may extend beyond battery charge to the starter or charging system. In those situations, reaching out to a quick call with our certified service team can help diagnose the underlying issue, or you can drop by our service center location for an electrical system check.
Table of Contents
- Why Is Connection Order and Grounding to Unpainted Metal Crucial During a Jump Start?
- What Is the Difference Between 4-Gauge and 8-Gauge Jumper Cables or Portable Jump Starters?
- How Long Does a Car Battery Take to Charge After a Jump, and Should You Idle or Drive?
- How Often Should a Car Battery Be Replaced to Prevent Sudden Dead Batteries?
- Common Questions About Jump Starting and Battery Health
- Schedule Expert Battery Testing and Service
Why Is Connection Order and Grounding to Unpainted Metal Crucial During a Jump Start?
Connecting the final negative jumper clamp to an unpainted metal ground on the frame or engine block—rather than the dead battery terminal—prevents electrical sparks near the battery, where highly explosive hydrogen gas naturally vents during operation. Attaching that last connection far away from the battery casing redirects any harmless initial arc to a solid chassis point, eliminating the risk of a battery gas ignition under the hood.
Incorrect connection sequences or reversed polarity can instantly ruin expensive vehicle components. Reversing positive and negative leads causes massive voltage surges that can blow primary fuses, fry engine control units, or melt diode bridges inside the alternator. Modern trucks and SUVs packed with advanced driver-assist systems and complex infotainment touchscreens are particularly sensitive to voltage spikes.
Maintaining clean, tight terminal connections is just as vital as correct cable placement. Corrosion buildup—visible as white or greenish powdery crust around battery posts—creates high electrical resistance that prevents charging power from reaching the battery cells. If your battery terminal hardware shows heavy pitting or structural damage, sourcing OEM replacement clamps through our parts department restores proper conductivity and ensures reliable starting power.
What Is the Difference Between 4-Gauge and 8-Gauge Jumper Cables or Portable Jump Starters?
A 4-gauge cable features significantly thicker internal copper wire than an 8-gauge cable, enabling higher electrical current to flow faster with less electrical resistance and heat buildup. Lower gauge numbers indicate thicker wire diameter, making 4-gauge or 2-gauge cables necessary to turn over large gas V8 engines or turbodiesel powertrains that demand high initial cranking amperage.
- 8-Gauge Cables: Suitable primarily for compact cars and small four-cylinder engines. They struggle to deliver sufficient current to turn over large engines in freezing temperatures.
- 4-Gauge Cables: Ideal all-around choice for full-size trucks, SUVs, and crossover utility vehicles. They handle higher current loads with minimal voltage drop across 12 to 20 feet of cable.
- 2-Gauge Cables: Heavy-duty commercial grade. Designed for heavy equipment, diesel engines, and maximum durability during severe winter cold snaps.
- Portable Lithium Jump Packs: Self-contained battery packs equipped with intelligent microprocessors. They eliminate the need for a second vehicle and include built-in reverse-polarity protection to prevent sparks if clamps are connected incorrectly.
For drivers managing agricultural work or heavy equipment around Milan, carrying heavy-duty 4-gauge cables or a portable jump pack in a GMC Sierra or Toyota Tundra provides reliable starting capability when working out in the field far from another vehicle.
How Long Does a Car Battery Take to Charge After a Jump, and Should You Idle or Drive?
A car battery requires 20 to 30 minutes of continuous driving at highway speeds to regain an adequate surface charge after being jump started. Driving the vehicle is far more effective than letting it idle in a driveway because higher engine revolutions per minute (RPM) drive the alternator to produce its optimal amperage output for battery replenishment.
+------------------------+--------------------------+---------------------------------+ | Charging Method | Engine RPM Range | Estimated Time for Sufficient | | | | Surface Charge | +------------------------+--------------------------+---------------------------------+ | Stationary Engine Idle | 600 - 800 RPM | 45 - 60 minutes | | Highway Speed Driving | 1,500 - 2,200 RPM | 20 - 30 minutes | | Plug-In Bench Charger | N/A (AC Power Grid) | 2 - 6 hours (Deep Charge) | +------------------------+--------------------------+---------------------------------+ While idling generates enough power to run basic engine electronics, it produces a minimal charging current. Turning on high-draw accessories—such as heated seats, rear window defrosters, headlights, and high-powered audio systems—further reduces the net electrical current reaching the battery. Keeping non-essential electronics turned off during the initial 30-minute drive ensures the maximum possible amperage flows back into the battery chemistry.
A single jump start allows you to drive the car to a safe location, but it does not fix a battery with degraded internal cells. If the battery fails to hold a charge after a half-hour trip, the alternator is either struggling to meet system demands, or the battery has reached the end of its functional service life.
How Often Should a Car Battery Be Replaced to Prevent Sudden Dead Batteries?
An automotive 12-volt battery should be replaced every 3 to 5 years, as internal lead plates and chemical electrolytes naturally degrade over time. Extreme seasonal temperature swings accelerate this degradation: summer heat dries out internal liquid electrolytes, while winter cold thickens engine oil and reduces chemical reaction speed, making cold-weather starting particularly demanding on older batteries.
Key warning signs that indicate a battery is nearing failure include:
- Slow engine cranking or a hesitant, dragging sound when turning the ignition key.
- Dimming interior cabin lights or flickering dashboard displays when starting the engine.
- A visible bulging or swollen battery case caused by internal heat stress.
- Pungent sulfur or rotten-egg odors coming from under the hood, signaling a leaking or overcharging battery.
- Frequent reliance on jump starts to get moving after sitting overnight.
Upgrading to an AGM battery (Absorbed Glass Mat) offers superior vibration resistance and faster recharge acceptance compared to standard flooded lead-acid designs. Having our technicians run a conductance test during every routine oil change measures remaining cold-cranking amps, letting you replace a fading battery before it leaves you stranded.
Common Questions About Jump Starting and Battery Health
Q: Can jump starting a modern car damage its onboard computer system?
An incorrect jump-starting procedure can cause a sudden voltage spike that damages sensitive engine management computers, climate controls, or safety sensors. Connecting cables in the proper order and placing the final negative clamp on an unpainted metal chassis ground rather than the battery post minimizes voltage transients, keeping vehicle electronics safe.
Q: Will a jump start work if the starter motor is bad?
A jump start will not start a car with a mechanically failed starter motor. Jump cables deliver high electrical current to the battery, but if the starter solenoid, internal motor windings, or drive gear are damaged, the engine will still make a sharp clicking sound or fail to turn over entirely despite full battery voltage.
Q: What should you do if a hybrid vehicle's 12-volt auxiliary battery dies?
Hybrid vehicles feature a small 12-volt battery that boots up the vehicle's onboard computers to engage the high-voltage traction system. You can jump start this 12-volt auxiliary battery using a standard jumper kit or portable pack, but you should consult the owner's manual to locate designated jump terminals under the hood before attaching clamps.
Q: Is it safe to jump start a car when it is raining?
Jump starting a vehicle in the rain is safe provided you take basic precautions to keep electrical connections as dry as possible. Rainwater on the exterior vehicle body does not present a shock hazard at 12 volts, but avoiding direct water pouring onto open battery terminals prevents corrosion and maintains clamp grip.
Q: What does it mean if a car battery dies again immediately after a 30-minute drive?
If a vehicle stalls or fails to restart right after a half-hour drive, the battery either has shorted internal cells that cannot store electrical energy, or the alternator is failing to produce charging voltage. A quick bench test at a qualified service facility will determine whether you need a replacement battery or a charging system repair.
Schedule Expert Battery Testing and Service
A reliable battery is essential for smooth daily drives and peace of mind on every journey. If your vehicle shows signs of slow cranking, dim lights, or requires frequent jump starts, our certified service department is equipped with advanced diagnostic tools to test your battery's health, charging system output, and alternator performance. We stock factory-recommended batteries for Chevrolet, GMC, and Toyota models to ensure complete electrical compatibility and long-lasting performance.
For covered emergency roadside situations, factory warranty programs offer specialized support. Drivers can reach out directly to Chevrolet Roadside Assistance: 1-800-243-8872, contact GMC Roadside Assistance at the same number, or call Toyota Roadside Assistance: 1-800-331-4331 for towing and jump-start coordination.
Don't wait for a dead battery to disrupt your schedule. Easily schedule your service appointment online with our certified team, give us a quick call to check battery availability, or visit our Kirksville service department for fast, professional battery testing and replacement today.
